AWS Services - CloudFront

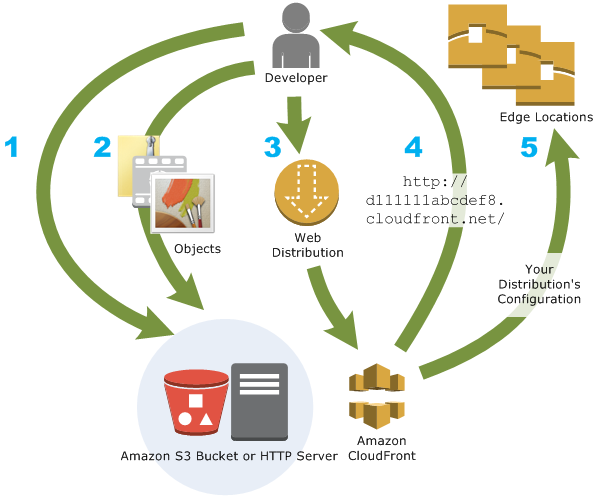

Amazon CloudFront is a Content Delivery Network (CDN) service that securely delivers content (websites, APIs, video, data) to users with low latency and high transfer speeds. It uses a global network of edge locations to cache and serve content closer to users.

CloudFront Overview

  • Global CDN: Distributes content through AWS Edge Locations worldwide.
  • Low Latency & High Speed: Requests are served from the nearest edge location.
  • Integrated with AWS Services: Works seamlessly with S3, EC2, Elastic Load Balancing, and API Gateway.
  • Security: Supports HTTPS, AWS Shield, WAF, and signed URLs/cookies for access control.

Key Components

Distribution

  • A distribution is the main CloudFront resource.
  • Two types:
    • Web Distribution: For websites, HTTP/HTTPS content.
    • RTMP (Deprecated): Previously for media streaming; no longer recommended.

Origins

  • The source of content served through CloudFront.
  • Examples:
    • Amazon S3 Bucket: Static assets, media files.
    • EC2 Instance / Load Balancer: Dynamic content.
    • Custom Origin: Any web server (e.g., on-premises).

Origin Groups

  • Allows failover between multiple origins (e.g., primary S3 bucket and backup).

Cache Behavior

  • Defines how CloudFront handles requests for specific content.
  • Configurable options:
    • Path Pattern: Match specific URLs (e.g., /images/*).
    • Viewer Protocol Policy: HTTP only, HTTPS only, or redirect HTTP to HTTPS.
    • Allowed HTTP Methods: GET/HEAD only, or GET/HEAD/POST/PUT/PATCH/OPTIONS/DELETE.
    • Cached HTTP Methods: Typically GET/HEAD; dynamic methods are not cached.
    • Cache Based on Headers/Query Strings/Cookies: Customize cache keys for personalized content.

Distribution Settings

  • Price Class: Choose edge locations to reduce cost:
    • Use All Edge Locations (best performance).
    • Use only selected regions (lower cost).
  • Default Root Object: File returned when a user accesses the root URL (e.g., index.html).
  • Alternate Domain Names (CNAMEs): Map custom domains (e.g., cdn.example.com).
  • SSL/TLS Certificate: Secure content delivery with HTTPS. Options:
    • Default CloudFront certificate.
    • Custom certificate from AWS Certificate Manager (ACM).
  • Logging: Enable logs for each request (stored in an S3 bucket).
  • IPv6 Support: Enable if your users require IPv6 connectivity.

Security Features

  • HTTPS: Encrypt communication between viewers and CloudFront.
  • Origin Access Identity (OAI): Restrict S3 bucket access only through CloudFront.
  • Field-Level Encryption: Protect sensitive data in requests (e.g., credit card details).
  • Signed URLs and Signed Cookies: Restrict content access to specific users or time ranges.
  • AWS WAF Integration: Protect against common web attacks (SQL injection, XSS).
  • AWS Shield: Provides DDoS protection.

Geo Restriction (Geoblocking)

  • Restrict or allow content delivery based on the viewer’s geographic location.
  • Two modes:
    • Whitelist: Only selected countries can access content.
    • Blacklist: Block selected countries from accessing content.
  • Use cases:
    • Comply with licensing restrictions (e.g., video streaming in specific countries).
    • Block malicious traffic from high-risk regions.
  • Note: Geo restriction applies at the viewer request level, before reaching the origin.

Performance Settings

  • TTL (Time-to-Live): Control how long objects are cached at edge locations.
    • Minimum TTL: Shortest cache time (default 0).
    • Default TTL: Default cache duration (e.g., 24 hours).
    • Maximum TTL: Longest cache time (e.g., 1 year).
  • Compression: Automatically compress files (gzip, Brotli) to reduce latency.
  • Lambda@Edge: Run custom code at edge locations to personalize content delivery.

Monitoring and Logs

  • CloudWatch Metrics:
    • Requests, bytes transferred, cache hit/miss ratio, 4xx/5xx error rates.
  • CloudFront Logs:
    • Detailed request logs stored in an S3 bucket.
  • Real-Time Metrics:
    • Provides near real-time data on traffic patterns.

Invalidations

  • Purpose: Remove cached content from all edge locations before TTL expires.
  • Common use case: After deploying a new version of a website, invalidate /index.html or /images/*.
  • Each invalidation request can target one or multiple file paths.
  • Example paths:
    • /index.html
    • /images/*
    • /* (invalidate everything, more costly).
  • Costs: First 1,000 paths per month are free; additional invalidations incur charges.

Common Use Cases

  • Static Website Hosting: Serve S3-hosted websites globally with caching.
  • Media Streaming: Deliver video-on-demand or live streaming with low latency.
  • API Acceleration: Reduce latency for APIs hosted on API Gateway or EC2.
  • Security and Compliance: Enforce HTTPS, signed URLs, and WAF for secure content delivery.

Best Practices

  • Use Origin Access Identity (OAI) for private S3 content.
  • Enable HTTPS (TLS 1.2 or higher) for security.
  • Configure cache behaviors per path for better performance.
  • Optimize TTL values depending on content freshness.
  • Use Lambda@Edge for dynamic content modifications.
  • Enable logging and monitor CloudWatch for performance and errors.
