AWS Services - VPC (Virtual Private Cloud)

Amazon VPC (Virtual Private Cloud) is the fundamental networking layer for AWS. It enables developers to launch AWS resources in a logically isolated virtual network that they define. With VPC, you have full control over your IP ranges, subnets, route tables, gateways, and security.

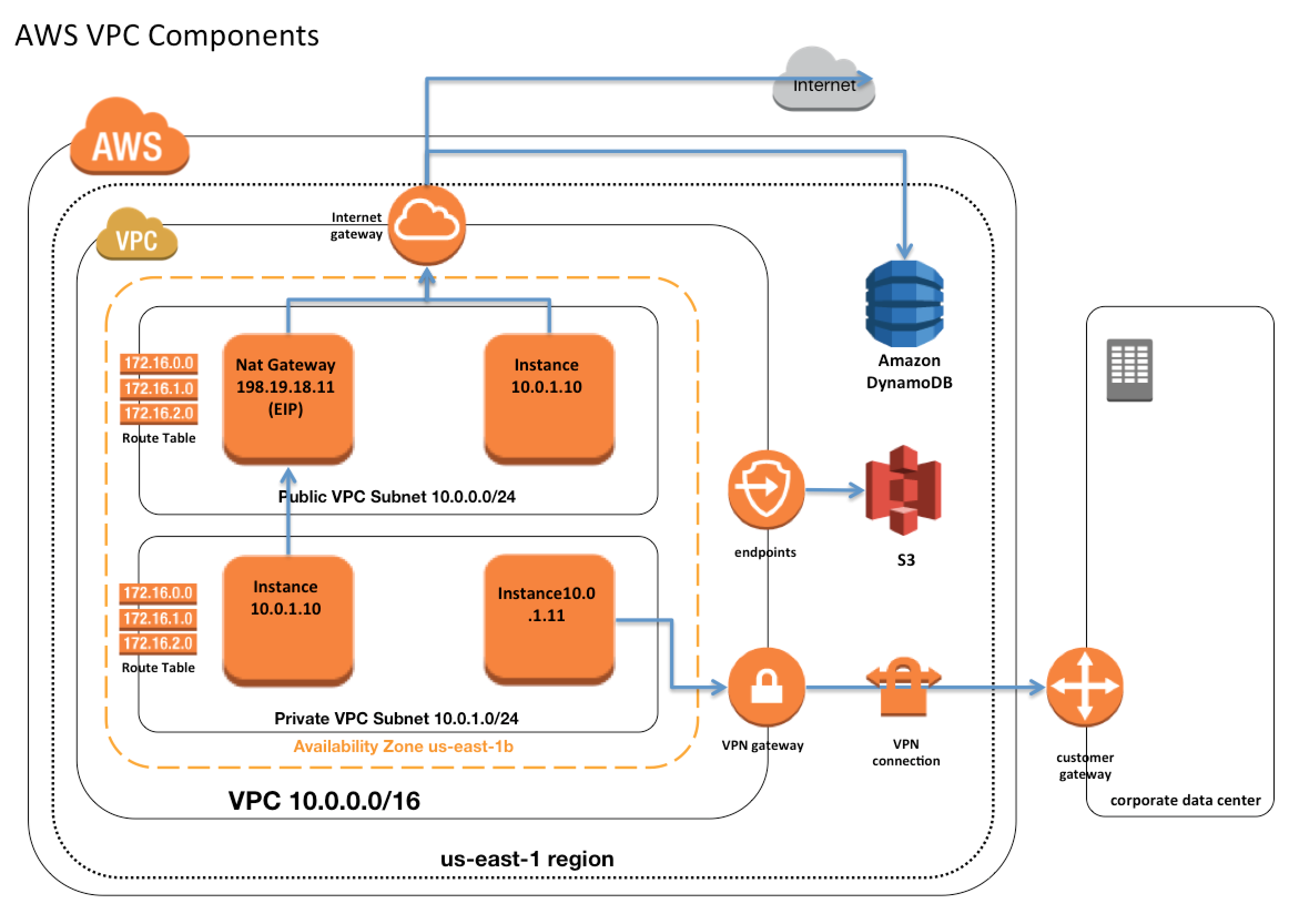

VPC Overview

  • Isolated Network: Each VPC is logically isolated from other VPCs in AWS.
  • Customizable IP Space: You choose a CIDR block (e.g., 10.0.0.0/16).
  • Scalable and Flexible: You can span multiple Availability Zones (AZs) for high availability.

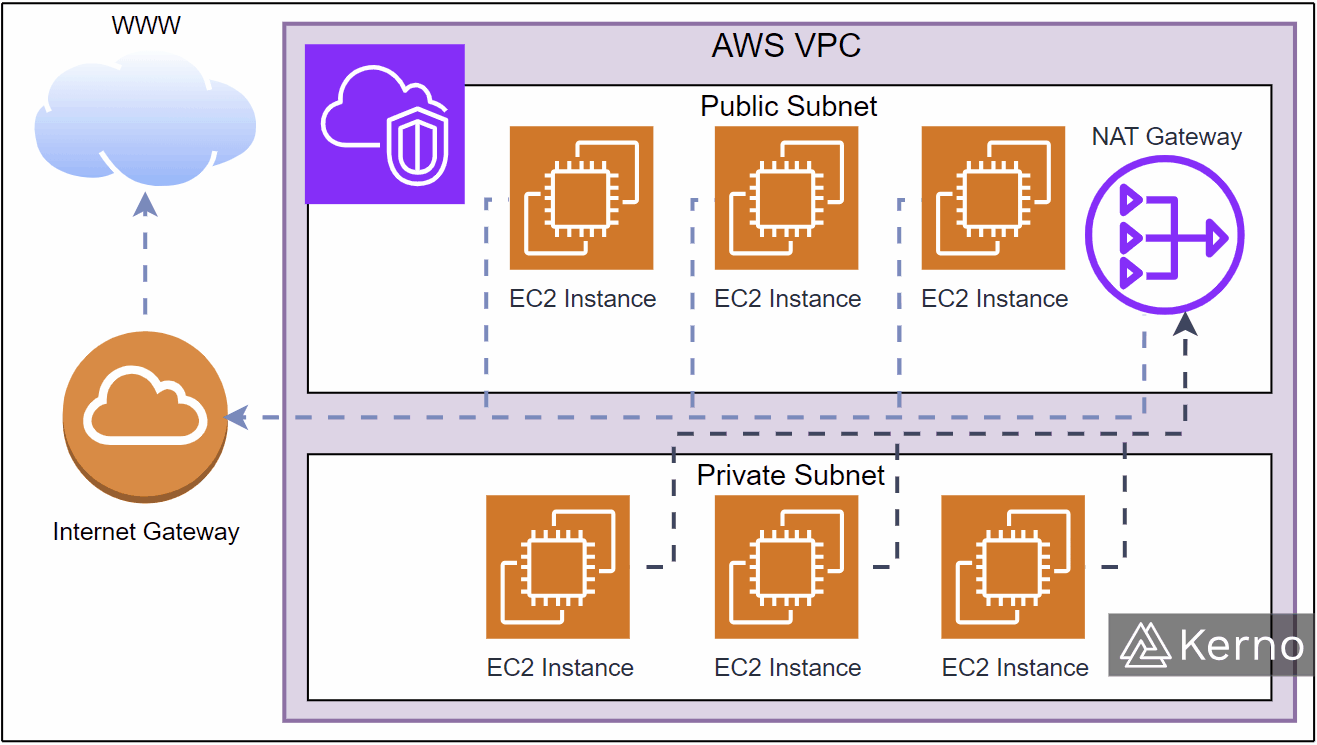

Subnets

  • Public Subnet: Connected to the Internet Gateway; resources can receive inbound/outbound internet traffic.
  • Private Subnet: No direct access to the internet; used for application servers, databases, and backend services.
  • Best Practices:
    • Use multiple AZs for redundancy.
    • Separate layers (web, application, database) into different subnets.

Route Tables

  • Define how network traffic flows inside the VPC.
  • Each subnet must be associated with a route table.
  • Common routes:
    • 0.0.0.0/0 → Internet Gateway (for public subnets).
    • 0.0.0.0/0 → NAT Gateway (for private subnets).
    • Local routes (within the VPC CIDR) are automatically added.

Internet Gateway (IGW)

  • A gateway that enables communication between resources in your VPC and the internet.
  • Must be explicitly attached to the VPC.
  • Required for public subnets.

NAT (Network Address Translation)

NAT Gateway

  • Fully managed, highly available AWS service.
  • Allows instances in private subnets to access the internet while preventing inbound connections.
  • Requires an Elastic IP.

NAT Instance

  • EC2 instance with a NAT AMI acting as a gateway.
  • More manual management; less common today since NAT Gateway is preferred.

Elastic IPs

  • Static public IPv4 addresses that you can associate with resources.
  • Common use cases: NAT Gateways, Bastion Hosts, fixed public endpoints.

Bastion Host (Jump Box)

  • EC2 instance in a public subnet used to securely connect to resources in private subnets.
  • Best practices:
    • Restrict inbound SSH/RDP with Security Groups and IAM.
    • Use Session Manager (SSM) as an alternative to avoid public exposure.

Security

Security Groups (SGs)

  • Instance-level virtual firewalls.
  • Stateful: return traffic is automatically allowed.
  • Define inbound and outbound rules (e.g., allow SSH on port 22).

Network ACLs (NACLs)

  • Subnet-level firewalls.
  • Stateless: return traffic must be explicitly allowed.
  • Useful for an extra layer of control (e.g., block IP ranges).

VPC Endpoints

  • Allow private connectivity between your VPC and AWS services without using the internet.
  • Types:
    • Interface Endpoints: Elastic network interfaces for services like S3, DynamoDB.
    • Gateway Endpoints: For S3 and DynamoDB only, added to route tables.
  • Improves security and reduces costs by avoiding public internet.

VPC Peering

  • Connects two VPCs so resources can communicate using private IPs.
  • Useful for cross-team or cross-account setups.
  • Limitations: no transitive peering (each connection is one-to-one).

AWS Direct Connect

  • Dedicated private network connection between your on-premises data center and AWS.
  • Provides lower latency and higher bandwidth than VPN.
  • Often combined with VPN for redundancy.

Monitoring and Logging

  • VPC Flow Logs: Capture IP traffic information for network interfaces, subnets, or VPCs.
  • CloudWatch Metrics and Alarms: Monitor bandwidth, packet loss, errors.
  • CloudTrail: Logs API activity for auditing.

Best Practices

  • Design VPCs with multiple AZs for fault tolerance.
  • Separate environments (dev, test, prod) into different VPCs.
  • Use Security Groups for application-level control, NACLs for subnet-level rules.
  • Prefer NAT Gateways over NAT Instances for high availability.
  • Use VPC Endpoints for private service access.
  • Enable VPC Flow Logs for troubleshooting and auditing.
